Our Services

Improvement of mechanical properties and machinability by quenching

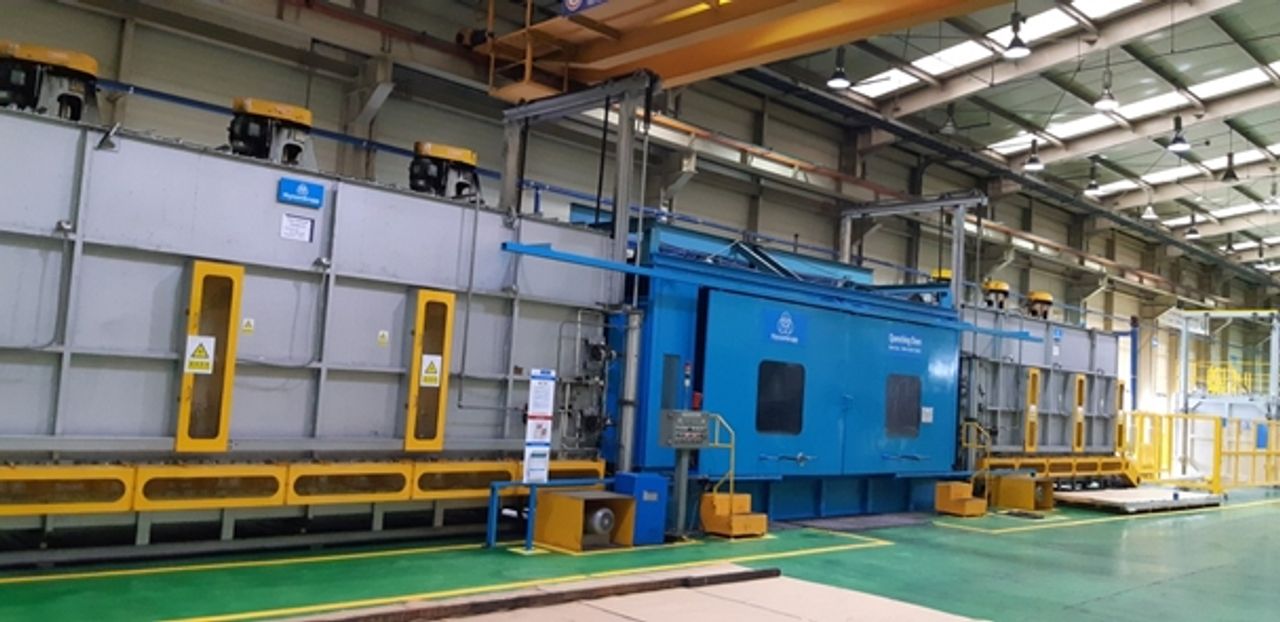

Heat-treatment oven

  • Quenching: Rapid cooling process

  • Temperature : 540℃±10℃

  • Oven Capacity : 3,000kg/batch

  • Available plate size : 350T × 1,560W × 5,100L

  • Coolant tank Size : 70 m3

Improvement of mechanical properties and machinability by aging

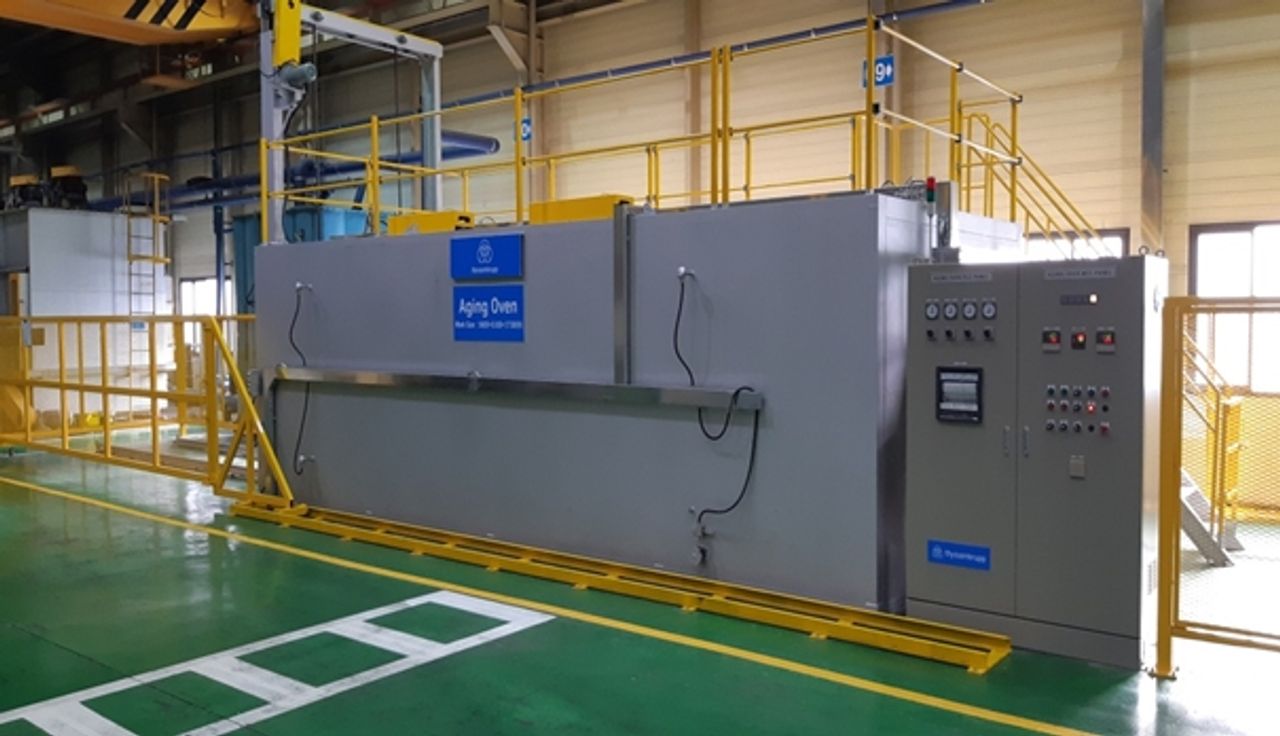

Aging oven

  • Aging : Improvement of strength

  • Temperature : 190℃±10℃

  • Oven Capacity : 6,000kg / batch

  • Available plate size : 1600×5100×1730(H)

Removing deformation and distortion. Making plates be flat.

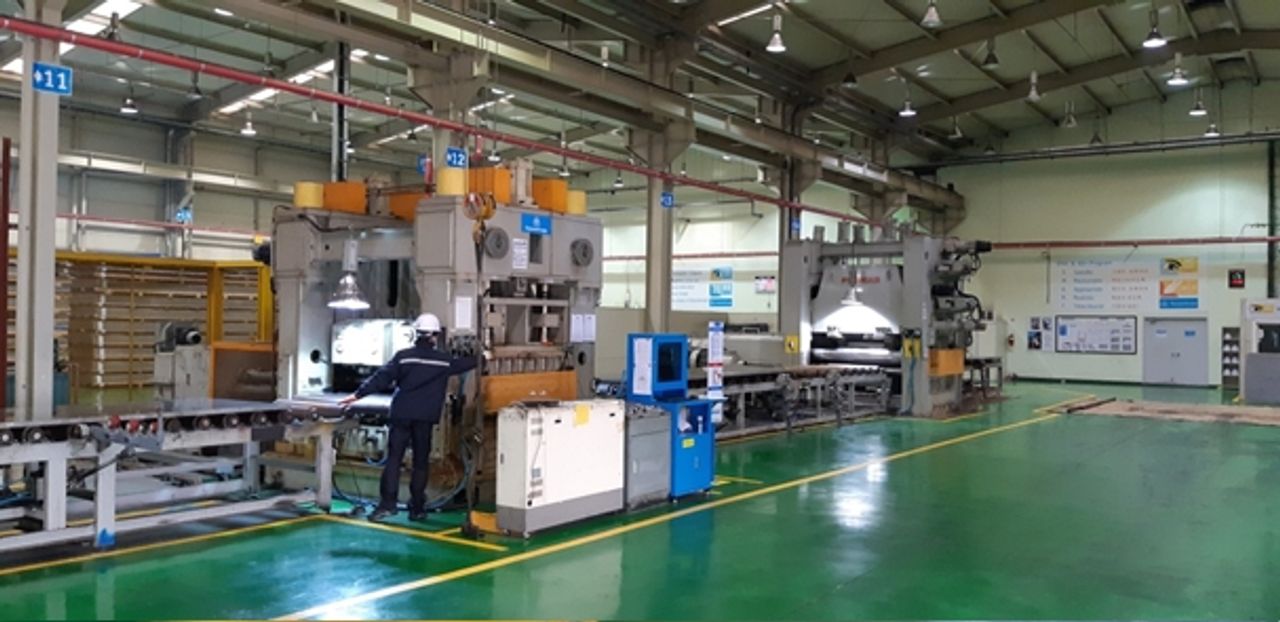

Leveler

1st  Leveler

  • Power : 150HP

  • 4 high 5 rolls type

  • Available Size : ~101T x 1,560W x 5,100L

  • Work Speed : 7M/min

2nd  Leveler

  • Power : 140HP

  • 4 high 13 rolls type

  • Available Size : ~41T x1,560W x 5,100L

  • Work Speed : 10M/min

Removing surface dents, scratches and discoloration by grinding surface.

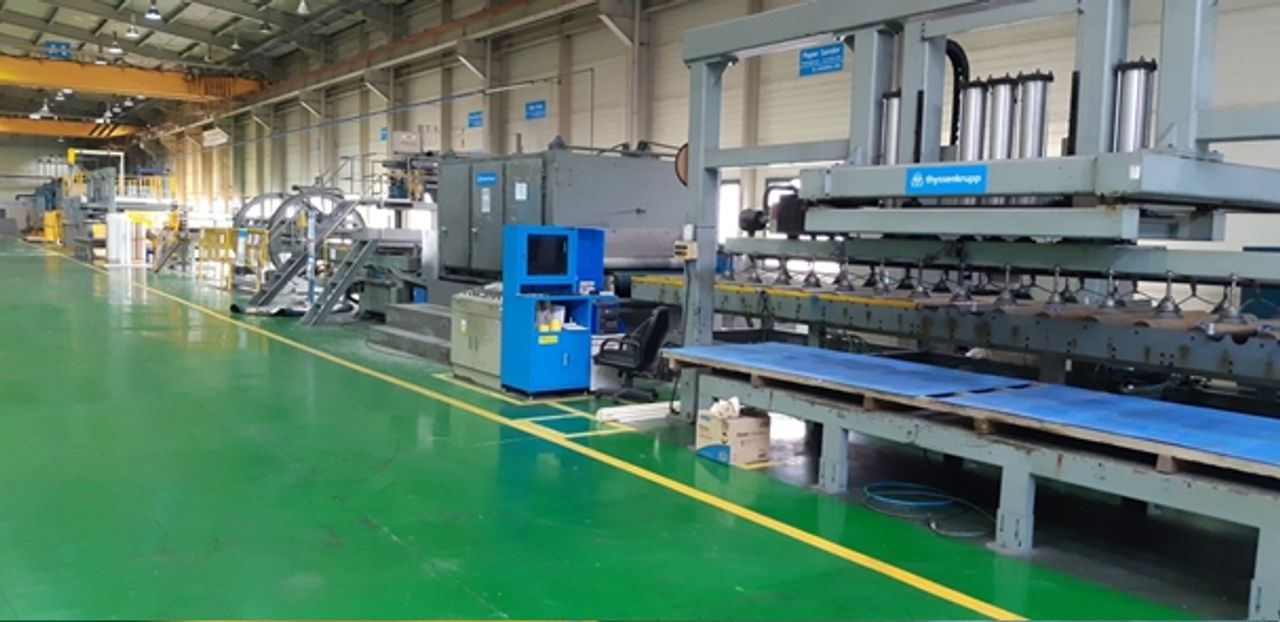

Sanding line

Sanding machine details:

  • Conveyor system

  • Able to control speed and plate thickness

  • Grinding material : paper-sand

Available Size:  Plate Size : ~41 T x 1,530W x 5,100L

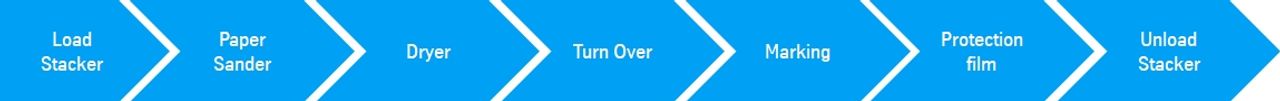

Sanding Line Composition
zoom

Sanding Line Composition

Realization of customer demand & satisfaction through customized size cutting

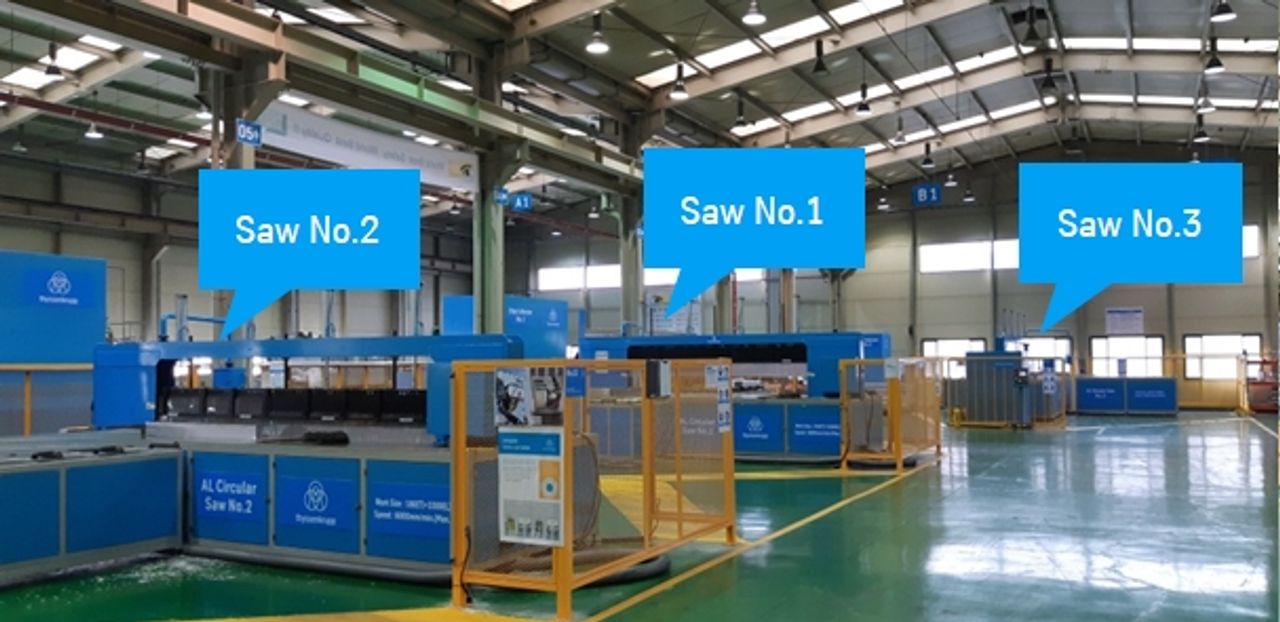

Circular saws for aluminum

No. 1, No. 2

  • CA 250P, CA 1015P-C

  • Power : 380V, 15HP

  • Cutting Size (TxL) : ~240 x 3300 (mm)

  • Cutting Speed : 125mm/min

  • 360˚ rotation on bed

No. 3

  • CA 2530P-C

  • Power : 380V, 25HP

  • Cutting Size (TxL) : ~300 x 5000 (mm)

  • Cutting Speed : 125mm/min

  • 360˚ rotation on bed

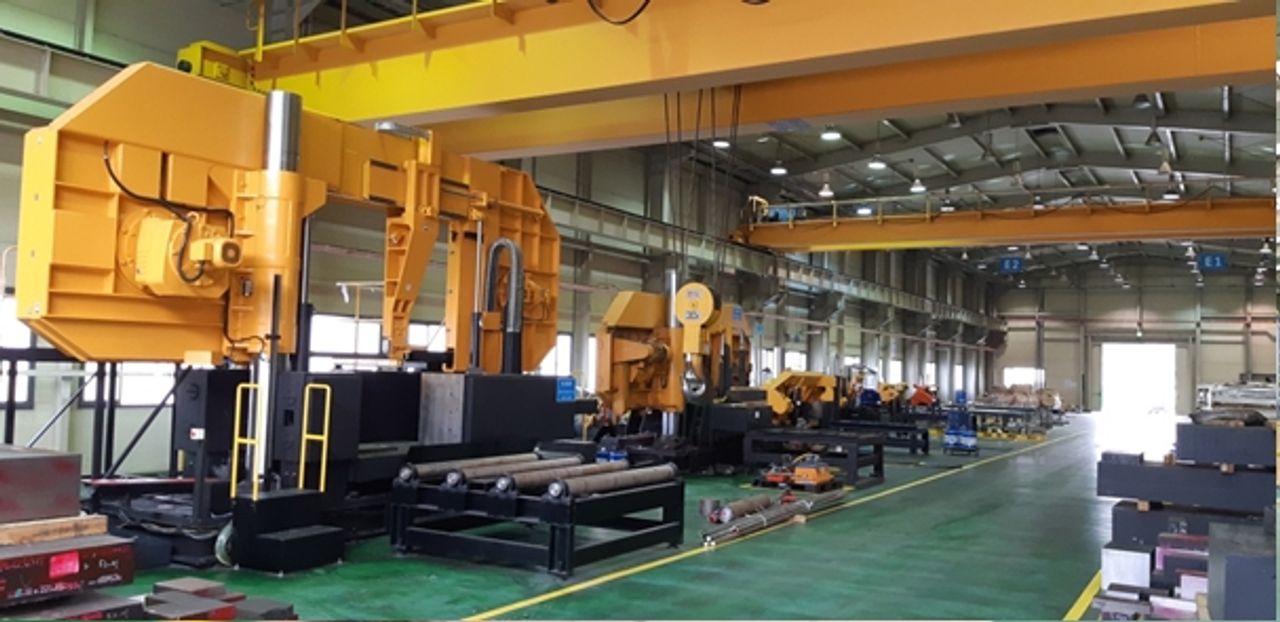

Band saws for tool steel

  • DELTA HFA-450, Work Size (h×w) : 450×450

  • EVERSING H-460, Work Size (h×w) : 460×460

  • EVERSING H-560, Work Size (h×w) : 560×560

  • EVERSING H-8070, Work Size (h×w) : 800×700

  • EVERSING H-1300, Work Size (h×w) : 1300×1300

  • EVERSING H-1816, Work Size (h×w) : 1800×1600

  • Hoist : 30 ton, 5 ton
